Geographical location is a key factor when upgrading engine performance. Height above sea level and temperature, amongst others, play a significant role in how much power and torque can be increased.
Every engine is unique and therefore we custom-tune each engine on our AWD dyno, taking environmental factors into account and monitoring important parameters such as AFR. Maximum power is not our goal. Safe and reliable power with the best possible fuel economy is what we aim for.
A custom ECU remap on our dyno starts from R4500, and we need the vehicle for approximately 8 hours.
A DPF warning, or a plain engine light with DPF fault codes, may indicate that the filter is restricting the exhaust. A diagnostic scan should confirm this before any work is done. We do not recommend removing a DPF unless there are clear indications of a DPF blockage or DPF-related DTC faults.
The usual DPF options:
A new DPF is often way out of reach for most people financially. Forced regeneration may work, but needing it may be a sign that the DPF is close to the end of its life. Forced regeneration is not cheap, so repeating it every few weeks is not financially viable. DPF cleaning is, in most cases, temporary and rarely guaranteed. Clearing codes or resetting soot counters alone does not fix a blocked filter, do not fall for this. A used DPF is a guess; its condition cannot be trusted.
Our DPF solution:
The solution we recommend is a complete DPF removal and DPF delete in Johannesburg. That is a two-part job. The filter core is removed from the housing so the exhaust can flow. The DPF function is then deleted from the ECU so the vehicle stops regenerating, measuring soot and logging DPF faults.
One part on its own is not enough. Software only, with the filter left in the exhaust, leaves a blockage in place and can damage the turbo. Physical removal only, with no software, leaves the ECU watching the DPF, so the lights and limp mode come back.
Pricing starts from R4500 and includes both parts. On most models, EGR delete is included with DPF delete at no additional cost.
For a more in-depth look at DPF removal and delete options, click here.
EGR delete and EGR removal:
EGR (exhaust gas recirculation) feeds exhaust gas back into the engine to lower emissions. On a diesel it also sends soot into the intake and the oil, builds carbon, and can cost you a little efficiency and response.
EGR delete is the software. We rewrite the ECU so it stops controlling and monitoring the EGR valve, the circuits and the flow, and so EGR-related DTC faults and limp mode do not return. On most models, EGR delete is included with DPF delete at no additional cost.
EGR removal is the physical work. We also offer EGR blank-off, EGR cooler bypass or, where possible, complete removal of the EGR, at an additional cost.
Software only is enough on many vehicles. If the valve or cooler is already failed, stuck or leaking, the hardware should be blanked, bypassed or removed as well, otherwise the mechanical fault is still there.
EGR delete from R999. Physical blank-off, bypass or removal is priced on inspection.
For a more in-depth look at EGR delete and removal options, click here.
AdBlue delete:
AdBlue (DEF) is injected into the exhaust as part of the SCR system to lower NOx. The tank, pump, dosing injector, NOx sensors and the AdBlue control unit are expensive to replace in South Africa. A single NOx sensor can cost around R15,000. When the system fails, the vehicle can lose power, limit remaining range, or refuse to start.
AdBlue delete is the software. We rewrite the ECU so it stops monitoring and controlling the AdBlue system. AdBlue-related warnings, functions, DTC faults and limp mode are switched off, and the vehicle no longer needs AdBlue in the tank. On Mercedes-Benz models this is the same job as a BlueTEC delete.
AdBlue delete is not a refill, a sensor reset or a cleared code. If the system is already in fault, those steps do not fix it.
AdBlue delete from R3000
For a more in-depth look at AdBlue removal and delete options, click here.
Additional options: We also offer DTC delete, swirl-flap delete, throttle-valve delete and speed-limit removal on most makes and models in Johannesburg.
P11A700 The Fill Level Of The Diesel Particulate Filter Is Too High.
P13AF00 The Soot Content Of The Diesel Particulate Filter Is Too High.
P16A600 Excessively High Nitrogen Oxide Emissions Due To Low AdBlue(R) Quality.
P15FD00 The Lower Limit Value Of Component ''B28/20 (Diesel Particulate Filter Differential Pressure Sensor)'' Has Not Been Reached.
Symptoms:
Limp Mode / Safe Mode (Low Power)
Warning Lights:
Check Engine Light - On
Solution:
DPF Removed and Software Re-Engineered to exclude DPF & EGR function from the Engine Control Unit (ECU). No more warning lights and original power restored.
P3005C5 The fill level of the diesel particulate filter is too high.
P3005C6 The fill level of the diesel particulate filter is too high. Regeneration of the diesel particulate filter is disabled.
P300198 The exhaust gas recirculation positioner (high pressure) is jammed closed.
P30063C Component ''NOx sensor upstream of SCR catalytic converter'' has a malfunction. There is a component fault.
P30063F Component ''NOx sensor upstream of SCR catalytic converter'' has a malfunction. There is an open circuit.
P300640 Component ''NOx sensor upstream of SCR catalytic converter'' has an electrical fault. There is a short circuit to ground.
Symptoms:
Limp Mode / Safe Mode (Low Power)
Warning Lights:
Check Engine Light - On Msg: AdBlue system fault
Solution:
DPF Removed and Software Re-Engineered to exclude DPF EGR ADBLUE function from the Engine Control Unit (ECU). No more warning lights and original power restored.

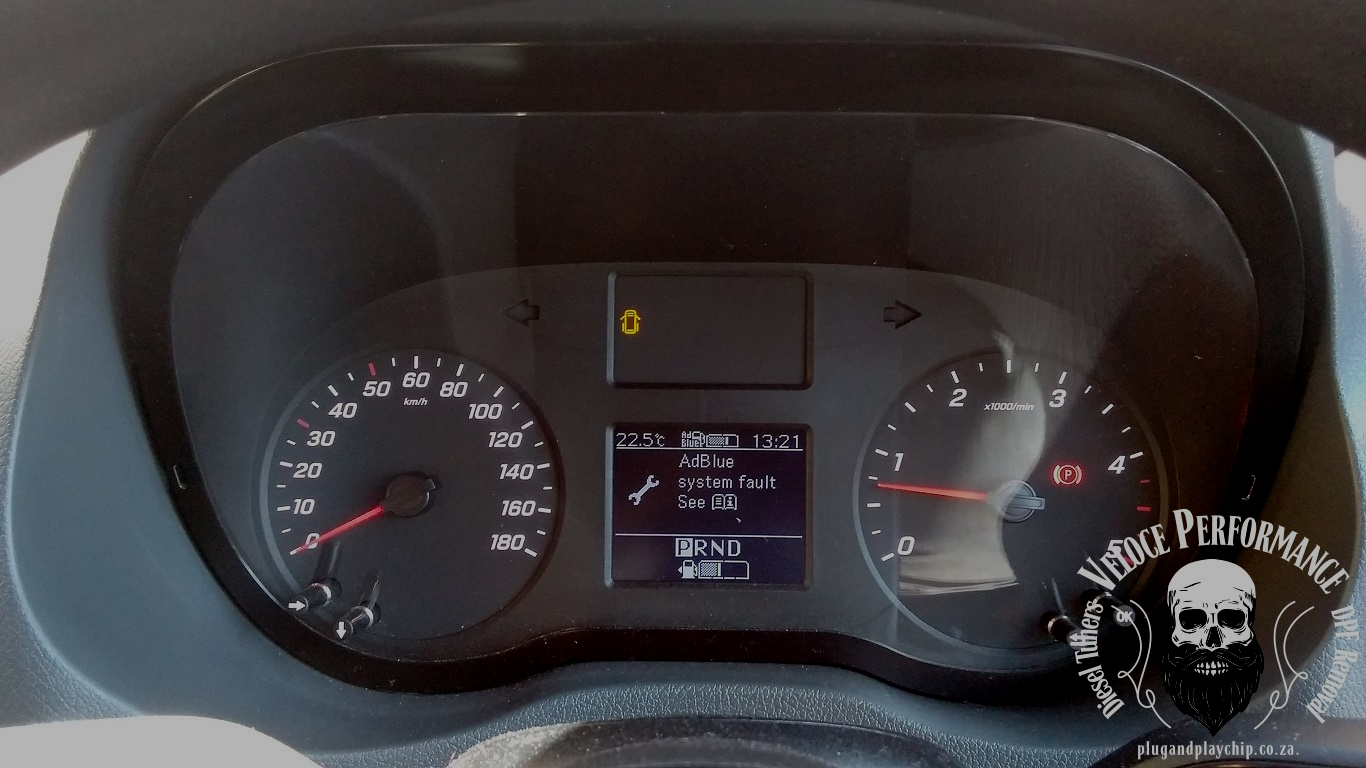

Mercedes Sprinter 519 (W907) ADBLUE Delete
Fault Codes:
P30008D Control unit AdBlue(R) has a malfunction.
P300704 AdBlue(R) system Warning stage1: The exhaust aftertreatment system has a malfunction due to discontinuity in the AdBlue(R) metering.
Symptoms:
Limp Mode / Safe Mode (Low Power)
Warning Lights:
Msg: AdBlue system fault
Solution:
ADBLUE Control Unit Disconnected and Software Re-Engineered to exclude ADBLUE function from the Engine Control Unit (ECU). No more warning lights and original power restored.
